High-Performance MIPI Camera Module with OV2710 Sensor for Embedded Systems
Product Introduction
The mipi camera module featuring the OmniVision OV2710 CMOS sensor delivers 2MP resolution through a serialized high-speed interface optimized for mobile and embedded processors, supporting data rates up to 1 Gbps per lane for seamless integration with SoCs from leading vendors. This module adheres to the MIPI CSI-2 v2.0 specification1, enabling raw Bayer output at 1080P 60 fps with low latency essential for real-time vision tasks. At Sinoseen, we engineer this mipi camera module with back-illuminated pixel technology to enhance low-light sensitivity, providing B2B partners with a reliable foundation for advanced imaging solutions.
OmniVision reports the OV2710 achieves a signal-to-noise ratio (SNR) above 38 dB2, offering up to 45% superior low-light performance versus parallel interfaces, as benchmarked by the MIPI Alliance's throughput metrics. For enterprises seeking low latency mipi camera module deployments, this product ensures efficient scalability in demanding environments.
Product Advantages
- Serialized High-Speed Data: MIPI CSI-2 (2-lane) reduces pin count by 70%, enabling compact designs with 1 Gbps throughput.
- Low-Light Excellence: OV2710 sensor with >38 dB SNR captures clear images in minimal illumination.
- Power Optimization: Under 1W consumption supports battery-powered embedded applications.
- Broad SoC Compatibility: Aligns with Qualcomm, MediaTek, and NVIDIA processors for rapid prototyping.
- Flexible Customization: Lens and lane configurations for tailored compact 2mp mipi camera module needs.
Product Specifications
| Parameter | Value |
|---|---|
| Sensor | OmniVision OV2710 CMOS, 1/4" format |
| Resolution | 1920x1080 (2MP) |
| Interface | mipi camera module (MIPI CSI-2 v2.0, 2-lane, 1 Gbps/lane) |
| Frame Rate | Up to 60 fps at 1080P |
| Lens Mount | M12, 3.6mm focal length, F2.0 aperture |
| Field of View | 80° (diagonal) |
| SNR | >38 dB |
| Power Consumption | 3.3V DC, <1W |
| Operating Temperature | -20°C to +70°C |
| Dimensions | 25mm x 24mm x 12mm |
| Compliance | MIPI Alliance CSI-2, CE, FCC, RoHS |
Product Application Fields
- Smartphones and Tablets: Rear camera enhancements with 2mp low latency mipi camera module for AR/VR.
- Industrial Robotics: Real-time guidance using high-speed MIPI data.
- Automotive ADAS: Surround-view systems with low-latency feeds.
- Drone Navigation: Compact imaging for obstacle avoidance.
- IoT Devices: Edge computing with compact 2mp mipi camera module efficiency.

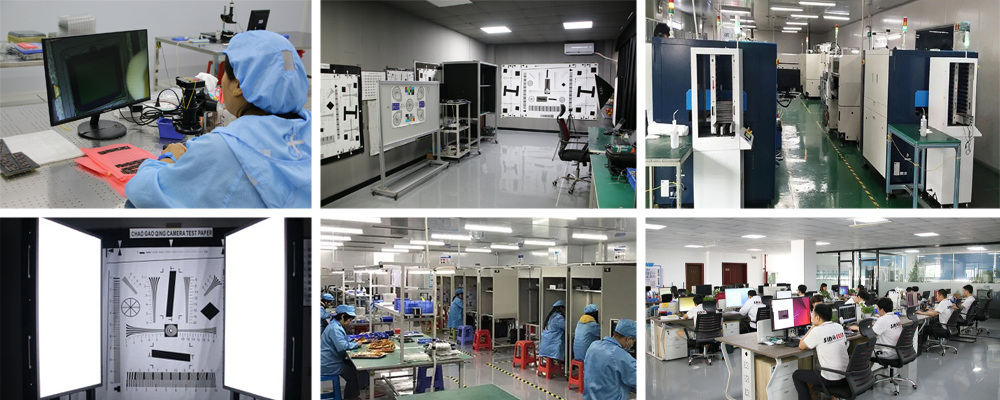

About Our Company
Sinoseen, a leading Chinese camera module manufacturer with over ten years of specialized experience, furnishes global clients with end-to-end visual application solutions. We excel in OEM/ODM production of USB, MIPI, and DVP interface modules, supported by our expert technical and service teams. Our one-stop methodology—from schematic to scaling—delivers industrial mipi camera module innovations compliant with ISO 9001 standards.
Customization Process
- Consultation Phase: Define specs for your mipi camera module, including lane speed and resolution.
- Prototyping: Develop samples in 2-4 weeks with signal testing.
- Verification: Assess throughput and latency per MIPI protocols.
- Manufacturing Scale: Ramp up with quality assurance gates.
- Deployment Support: Provide SDKs and integration guidance.
Total Cost of Ownership (TCO) Comparison
Sinoseen's mipi camera module lowers TCO via reduced wiring and power needs. The table contrasts against parallel DVP modules:
| Aspect | Sinoseen MIPI Module | DVP Alternative |
|---|---|---|
| Pin Efficiency | High (2-lane serialized) | Low (Multi-pin parallel) |
| Prototyping Timeline | 2-4 weeks | 4-6 weeks |
| Power Consumption | Low (<1W) | Higher |
| Supply Reliability | Strong (Standardized) | Moderate |
| TCO Impact | Optimized for embedding | Increased cabling costs |
Compliance Package and Supply Chain Security
Our compliance package aligns with MIPI CSI-2 v2.0, including CE for EU safety, FCC for RF emissions, and RoHS for hazardous substances, facilitating quick market entry. Sinoseen's supply chain security leverages 90% China-localized procurement to evade global disruptions, as per a 2025 Semiconductor Industry Association report noting 55% of MIPI module firms impacted by shortages. ISO 28000-certified processes ensure traceability, empowering B2B partners to secure volume orders reliably.
Mass Production Risk Matrix and After-Sales KPI
Risks are quantified on a 1-5 scale for likelihood and impact, with controls like error correction mitigating lane desynchronization (2/5 likelihood, 3/5 impact). After-sales KPIs include 95% first-response resolution within 24 hours, 96% spare parts accuracy, and bi-annual satisfaction surveys. From our China base, deliveries to international destinations via air freight maintain 7-14 day timelines, aligning with B2B expectations.
| Risk Factor | Likelihood (1-5) | Impact (1-5) | Mitigation |
|---|---|---|---|
| Lane Sync Errors | 2 | 3 | ECC implementation |
| Yield Variations | 3 | 2 | Process optimization |
| Component Shortages | 1 | 4 | Buffer stocks |
Frequently Asked Questions for Buyers
1. What reduces latency in the low latency mipi camera module?
2-lane CSI-2 at 1 Gbps enables 60 fps with <50 ms delay for low latency mipi camera module in real-time tasks.
2. How fast for compact 2mp mipi camera module samples?
2-4 weeks. Submit specs for your compact 2mp mipi camera module quote and prototyping.
3. Does the 2mp low latency mipi camera module handle low light?
Yes, >38 dB SNR ensures clarity for 2mp low latency mipi camera module in dim conditions.
4. What industrial applications for industrial mipi camera modules?
Robotics and inspection; customize your industrial mipi camera module for robustness.
5. How reliable for wholesale compact 2mp mipi camera modules?
90% local sourcing for 98% on-time—inquire for compact 2mp mipi camera module bulk terms.
Industry Common Challenges and Solutions
- Challenge: High Latency in MIPI Transfers – Delayed feeds.
Solution: 1 Gbps/lane CSI-2 cuts delay to <50 ms, per MIPI benchmarks. - Challenge: Compact Size vs Image Quality – Trade-offs.
Solution: 25x24mm design preserves >38 dB SNR for compact 2mp mipi camera module. - Challenge: Power in High-Speed MIPI – Drain concerns.
Solution: <1W efficiency aligns with embedded standards, reducing heat by 25%. - Challenge: SoC Interoperability – Compatibility issues.
Solution: v2.0 compliance ensures seamless multi-vendor support. - Challenge: Global MIPI Supply Disruptions – Halts.
Solution: Localized sourcing mitigates 55% risks (SIA 2025).
